Maibec - Rabbeted Bevel EM+ Siding
Available for delivery in 3–14 business days.
Not available for immediate pickup.
Please call to confirm local pickup availability.
-
Estimated Delivery:Jun 08 - Jun 12
-
Free Shipping & Returns: On all orders over $75
Maibec - Rabbeted Bevel EM+ Siding

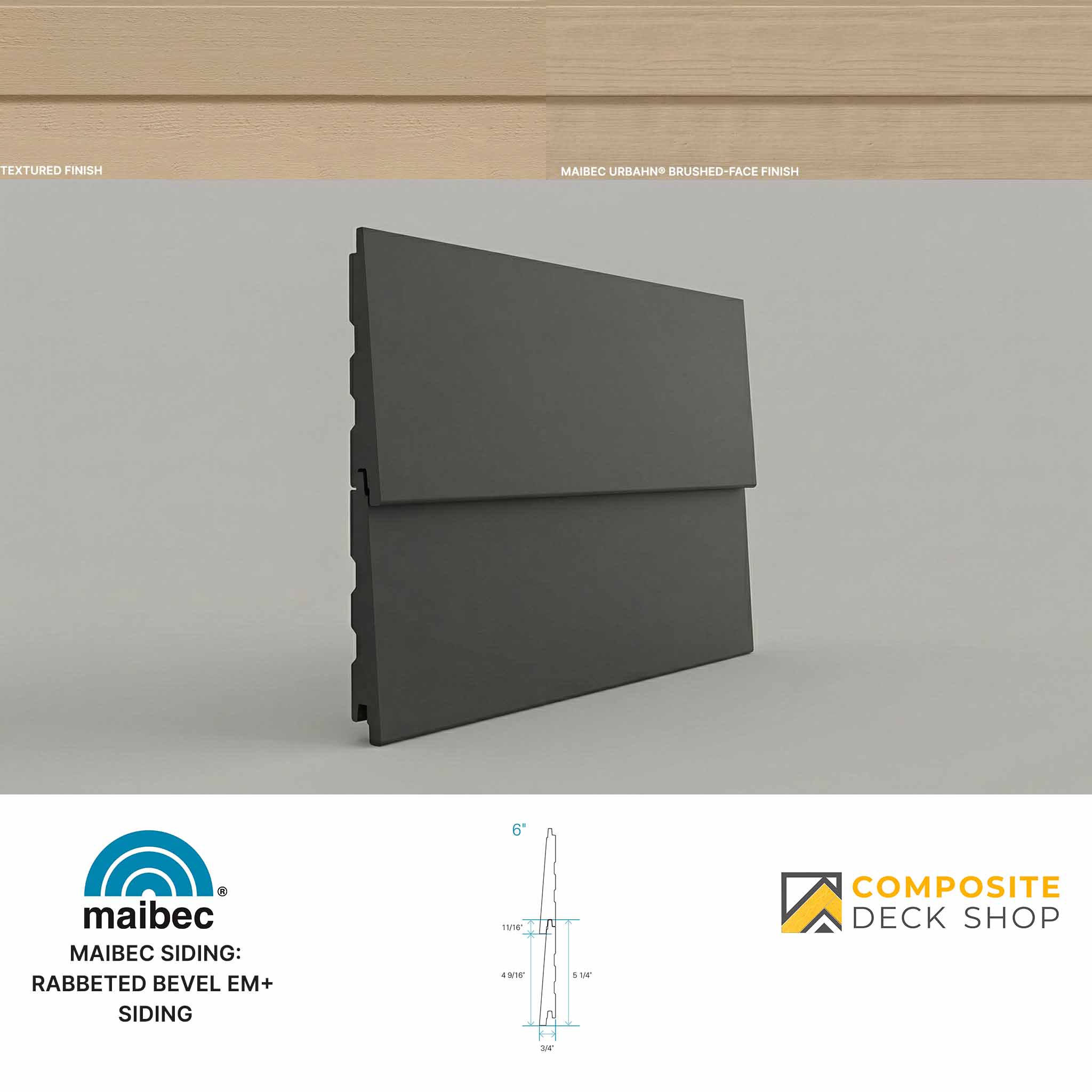

Maibec — Rabbeted Bevel em+ Siding
(1" x 6")
Rabbeted Bevel em+ siding is manufactured from kiln-dried SPF (spruce–fir) and factory-coated on all six sides in a controlled environment for consistent stain absorption and increased protection against sun and weather. For exterior use only.
General Specifications
- Species: Spruce–Fir (SPF), sound tight knot
- Moisture: kiln-dried (KD) to 12%–16%
- Lengths: 6' to 16' random lengths (bundled)
- Factory coating: coated on all six sides
- Stain type: low-VOC, water-based stains
Installation
Horizontal installation only.
Coverage/takeoff: See the calculation method under the SUPPORT tab on Maibec.com.
Finishes
Available in Textured and Maibec URBAHN® brushed-face finishes.
- Textured: available for Regular profiles and Maibec em+® profiles
- URBAHN® brushed-face: available only in 6" em+®
Colours
SOLID
- 111 — White
- 399 — Black
- 010 — Ocean Grey
- 014 — Lamosite
- 015 — Timber
- 016 — Hematite
NATURAL
- 052 — Algonquin Amber
- 053 — Muskoka Brown
- 058 — Coastal Charcoal
- 059 — Ocean Spray
- 062 — Meadow Greige
- 063 — Sunkissed Beige
Profiles & Dimensions
Actual dimensions vary by width and installation system (Regular vs Maibec em+®).
| Nominal Width | Installation System | Finish | Random Lengths | Actual Size (T × W) | Exposed Surface | Overlap | Installation | Lead Time |
|---|---|---|---|---|---|---|---|---|
| 4" | Regular | Textured | 6'–16' random | 7/8" × 3 3/8" | 2 13/16" | 9/16" | Horizontal | 1 week |
| 6" | Regular | Textured | 6'–16' random | 7/8" × 5 1/4" | 4 3/4" | 1/2" | Horizontal | 1 week |
| 6" | Maibec em+® | Textured / URBAHN® brushed-face | 6'–16' random | 3/4" × 5 1/4" | 4 9/16" | 11/16" | Horizontal | 1 week |
| 8" | Regular | Textured | 6'–16' random | 7/8" × 7" | 6 7/16" | 9/16" | Horizontal | 1 week |
Fastening System
Regular Installation System (Nails) — for Regular profiles
- Use Maibec hot-dipped zinc galvanized ring shank nails with textured head, corrosion resistant and factory-stained to match. (Order nails at the same time as the siding.)
- A plastic hammer end cap is provided to help protect the stain on nail heads.
-
Estimated quantities:
- Simple nailing: 15 lbs of nails per 1,000 sq. ft.
- Double nailing: 6" — 30 lbs per 1,000 sq. ft.
- Double nailing: 8" — 20 lbs per 1,000 sq. ft.
Coastal installations may have specific requirements—refer to the Maibec Regular Siding or Maibec em+® Siding Installation Guide.
Maibec em+® Installation System (Staples) — for 6" em+® profile
- Fasten using 2", 7/16" crown, 16 gauge, resin-coated stainless steel SUS 304 staples.
- Estimated quantities: 3,000 staples (1 box) per 750 sq. ft.
- Also order 1 lb of 2" nails per 1,000 sq. ft. (starter course, tops of walls, and around openings).
- Recommended: Maibec em+® stapler guide (available through Maibec retailers).
- Compatible pneumatic staplers (with the em+® stapler guide): HITACHI™ (N5008 AC 1" and AC 2"), MAKITA™ (AT1150A), SENCO™ (SNS41) and certain discontinued models (SNS50XP/SNS45XP/SNS44XP).
Warranty (Summary)
Some restrictions apply—see detailed warranty documentation.
WARRANTY — SIDING (TEXTURED FACE)
- 50 years against wood decay
- 15 years on solid stain (2 coats)
- 8 years on natural tones stain
- 5 years on labour
WARRANTY — SIDING (BRUSHED FACE / MAIBEC URBAHN®)
- 50 years against wood decay
- 10 years on solid stain (2 coats)
- 8 years on natural tones stain
- 3 years on labour
Wall Preparation (Key Requirements)
- Install over a standard wall with studs up to 16" on-centre
- Sheathing: OSB or plywood
- Weather barrier: approved water-resistive barrier
- Final step: install vertical furring strips into studs (per code and Maibec requirements) to create a continuous air gap, especially when used with ventilation and drainage accessories.
Complementary Accessories
- Ventilation & drainage accessories: ventilated strips with a perforated 50% open pattern to support airflow/drainage and help prevent rodents and certain insects from entering behind the wall.
