Sunbelly Privacy Screen - U Channel 68” Set
Sunbelly Privacy Screen - U Channel 68” Set, 2pc

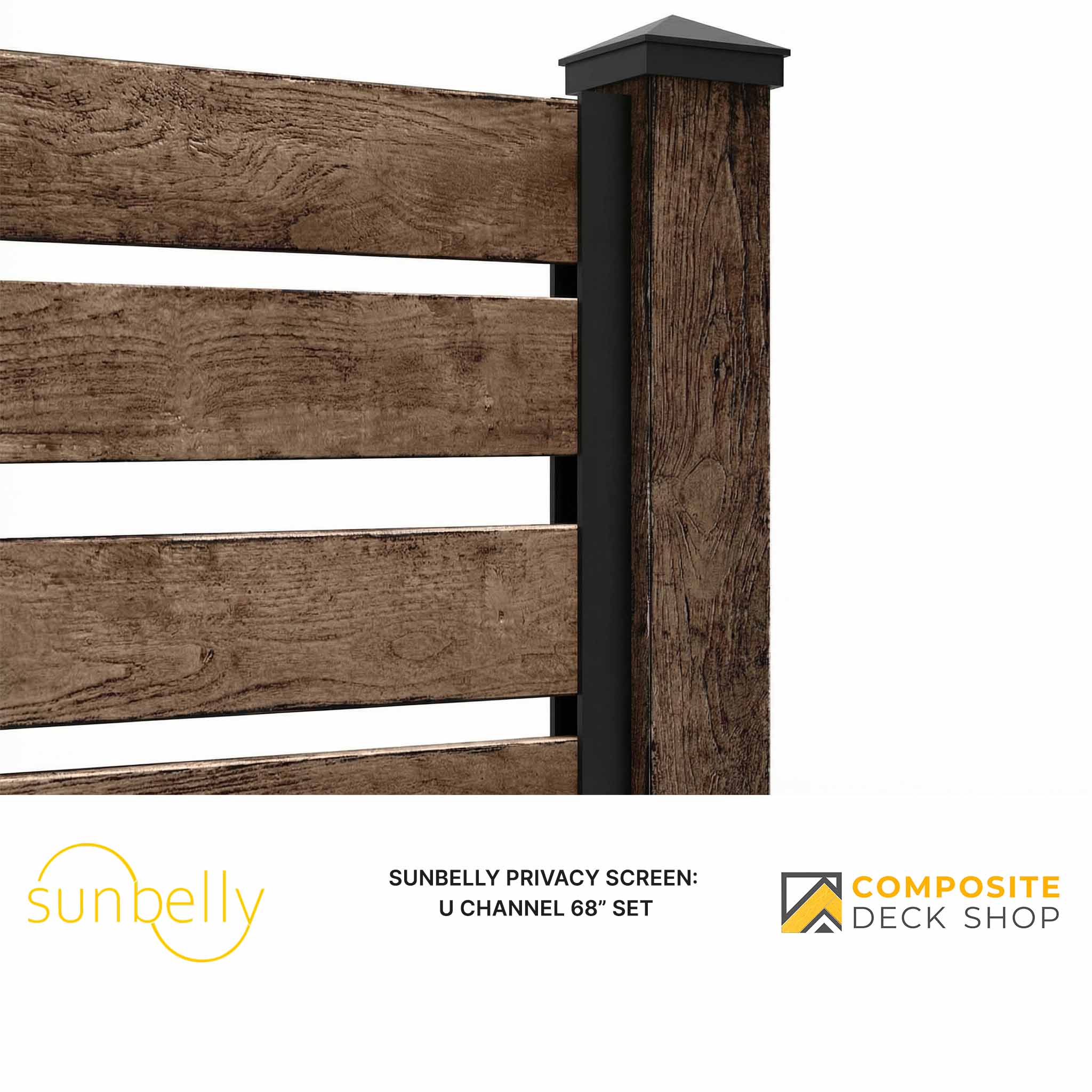

Sunbelly Privacy Screen U-Channel Sets allow a custom privacy wall or privacy fence to be built using 5/4” boards (true 1” thick). Suitable for pressure treated wood, cedar, or maintenance-free deck boards, this system provides a clean and versatile way to create custom privacy sections.
Designed for straightforward installation, the U-Channel Set allows boards to slide into the channels to form a privacy wall. Custom sections can be built up to 6’ wide, depending on the board material used.
Product Details
Looking to create a custom privacy wall or privacy fence? Sunbelly U-Channel Sets are designed to do exactly that. The channels accommodate boards up to 1” thick. If using boards or slats thinner than 1”, shims (not included) can be used to help create a tighter fit.
We recommend 5/4” pressure treated wood or cedar boards for sections up to 6’ wide, or composite or PVC planks for sections up to 4’ wide.

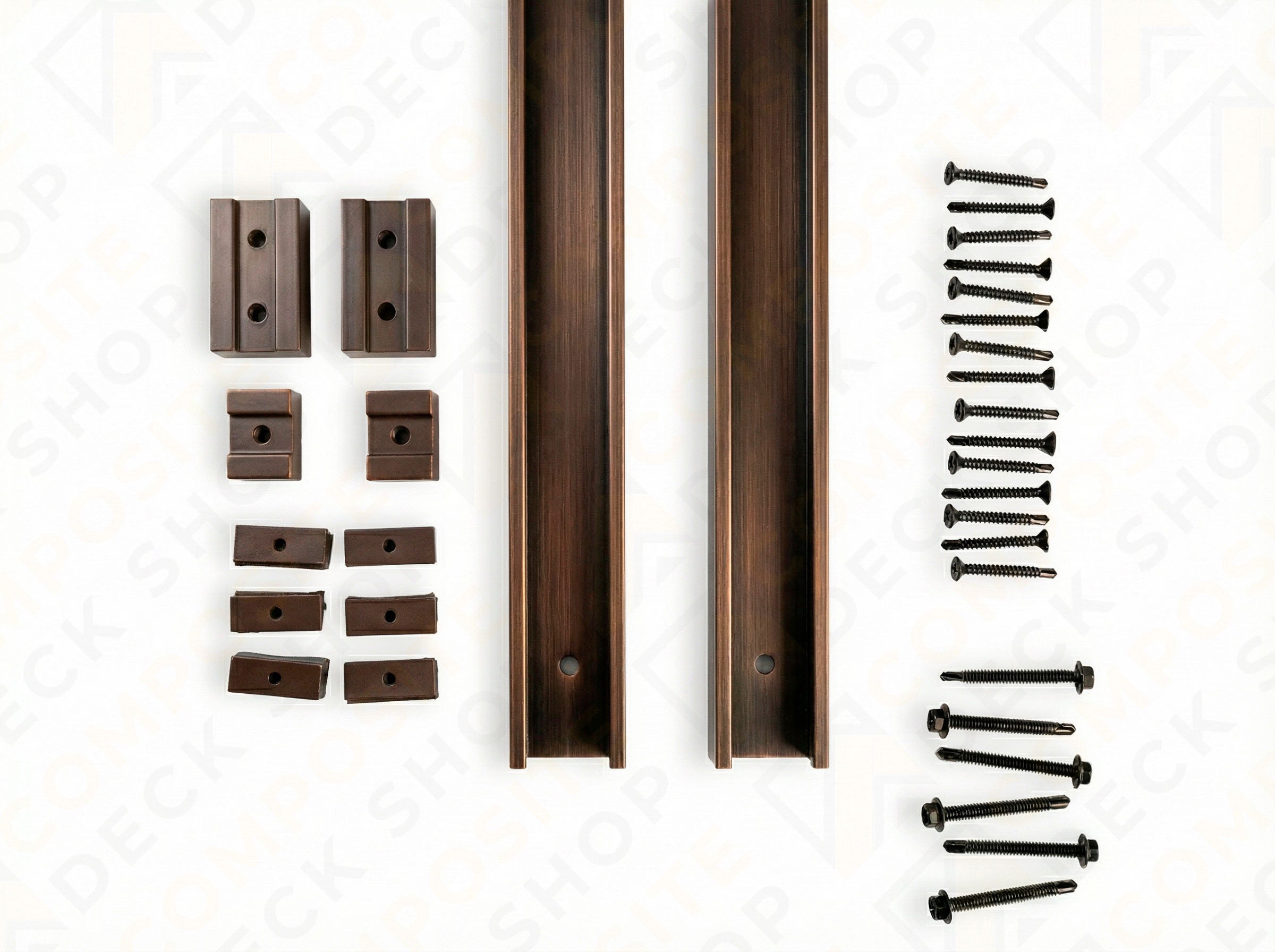

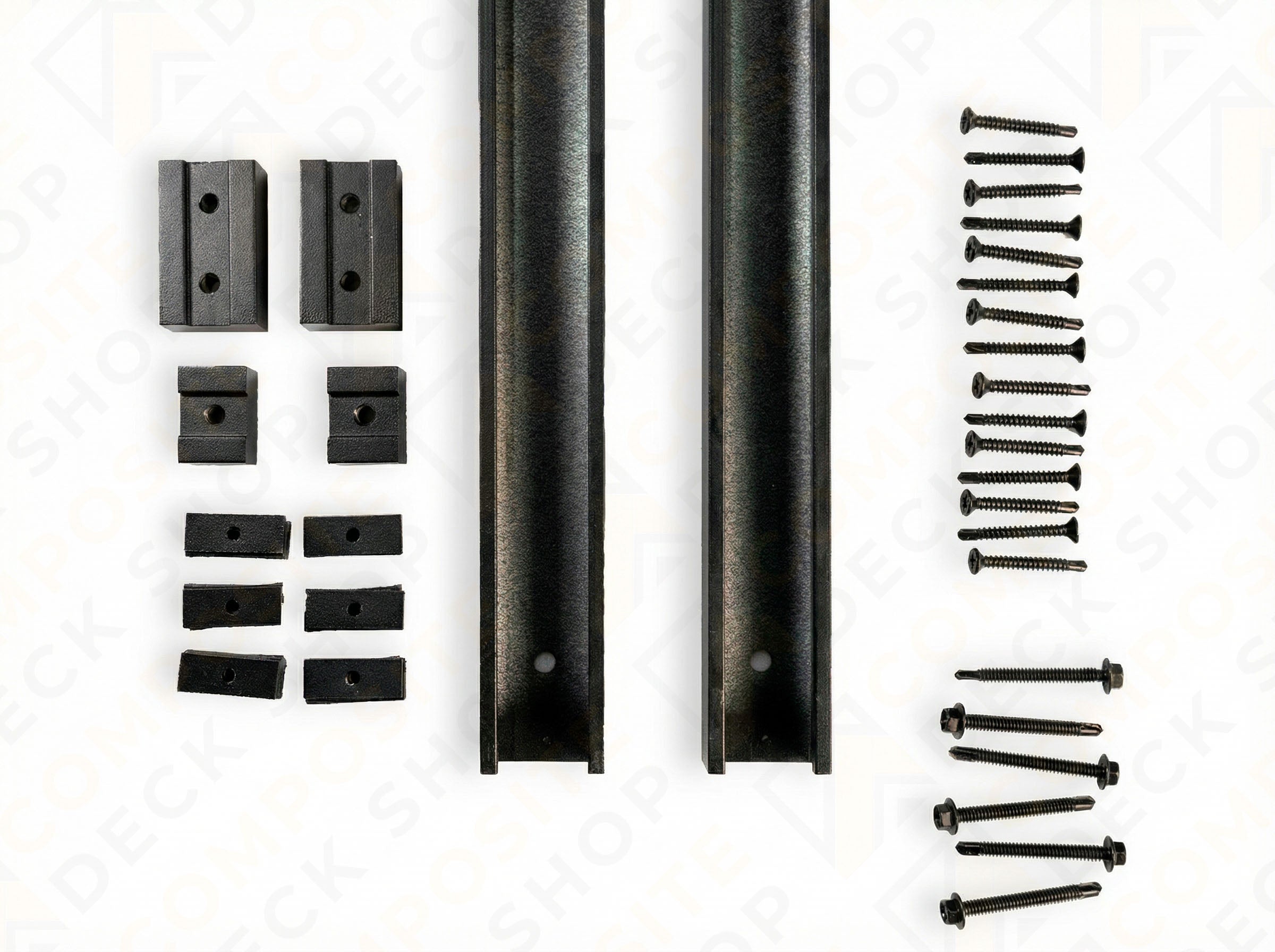

Set Includes
| Component | Details |
|---|---|
| U-Channels | 2 U-Channels |
| Mounting Blocks | Top and Bottom Mounting Blocks |
| Philips Head Screws | 14 screws |
| Hex Head Screws | 6 screws |
| Spacers | 36 spacers, 1/2” each |
Product Specifications
| Specification | Details |
|---|---|
| Product Name | Sunbelly Privacy Screen - U Channel 68” Set, 2pc |
| Material | 100% Powder-Coated Aluminum |
| Colour Options | Black (BK), Bronze (BZ), White (WT) |
| Thickness | 2.0 mm |
| Width | 1.5” |
| Height | 72” |
| Weight | 2.5 lbs |
| Board Compatibility | Accommodates boards up to 1” thick |
| Recommended Board Types | 5/4” pressure treated wood, cedar, composite, or PVC boards |
| Maximum Section Width | Up to 6’ wide with pressure treated or cedar boards; up to 4’ wide with composite or PVC planks |
Important Note
Posts and boards/planks are not included. Shims are also not included when using boards less than 1” thick.
